UL20276 多芯电脑线

 美国安规UL 20276 Multi-Core Computer Cable 多芯电脑线，多芯数字信号线材，一般芯线会做成对绞，进行信息对输，这样不会受到电波影响画质.

■ 产品说明:
● 导体使用裸软铜或镀锡软铜绞线
●PVC或半硬PVC或PP绝缘
●芯线集合后铝箔麦拉带隔离
●裸软铜或镀锡软铜线地线
●地线置于铝箔麦拉带与编织层之间
●裸软铜或镀锡软铜编织隔离
●PVC被覆
●额定温度：80℃；额定电压：30volts
●可通过UL VW-1垂直耐燃测试
●参考标准：UL 758；UL 1581

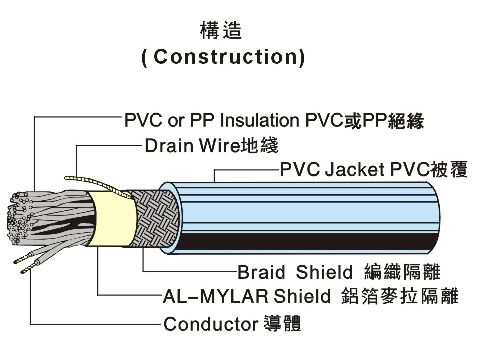

■ PRODUCT DESCRIPTION：
● Tinned or bare stranded copper conductor.
●Color-coded PVC or SR-PVC or PP insulation.
●Cores cabled under aluminum mylar shield.
●Tinned or bare copper drain wire.
●Drain wire laid between aluminum mylar and braid.
●Bare or tinned copper wire braid shield.
●PVC jacket.
●Rated temperature:80℃.Rated voltage:30 volts.
●Passes UL VW-1 vertical flame test.
●Reference standard：UL subject 758, UL1581.

■ 产品应用：
● 用于二类电子电路设备内部与外部连线

■ APPLICATIONS:
● Forinternal wiring or external wiring of class 2 systems and equipment and electrical equipment.
