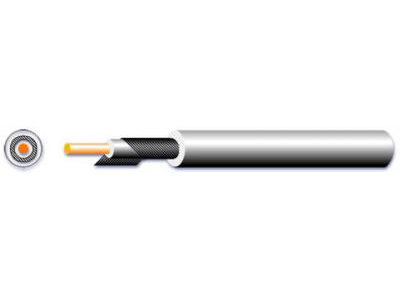

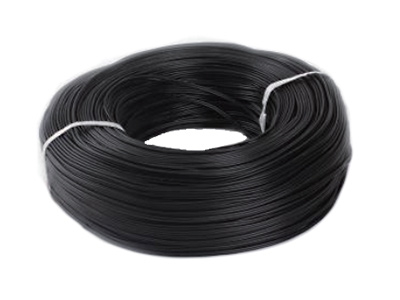

UL 1185 Single Shielded Wire 单芯隔离线
■ 说明：
●导体使用单条或绞线，30 -410AWG裸软铜或镀锡软铜线
●PVC绝缘，芯线类似UL 1007
●裸软铜或镀锡软铜线缠绕隔离
●单芯PVC被覆
●额定温度：80℃； 额定电压：300volts
●可通过UL VW-1SC 垂直耐燃测试
●参考标准：UL 758，UL 1581

■ 应用：
●用于录音，录音工作室，音响系统，电子电路

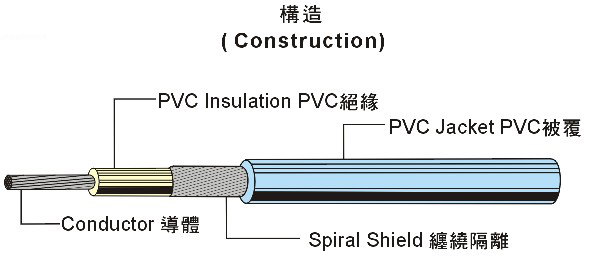

■ PRODUCT DESCRIPTION：
●Tinned or bare,stranded or solid copper conductor, 30-40AWG.
●Color-coded PVC insulation,similar to UL 1007
●Tinned or bare copper wire spiral shield.
●Color-coded PVC jacket single core.
●Rated temperature：80℃. Rated voltage：300 volts.
●Passes UL VW-1 SC vertical flame test.
●Reference standard：UL subject 758，UL 1581.

■ APPLICATIONS：
●For use in recording studios,sound systems  and electronic circuits.
